Secret Shelf

Rogue Engineer
Rogue Engineer
Follow
project image
project image
project image
  • project thumbnail
  • project thumbnail
  • project thumbnail
  • project thumbnail
Rogue Engineer
Rogue Engineer
Follow

Who doesn't like hidden storage! Jamison of RogueEngineer.com gives you these step-by-step plans that detail exactly how to make this floating shelf with secret hidden storage. This secret shelf can be built for around $30.

Check out more great DIY plans from Rogue Engineer here.

Show More

Print Options

  1. Project Steps

    1. Step: 1

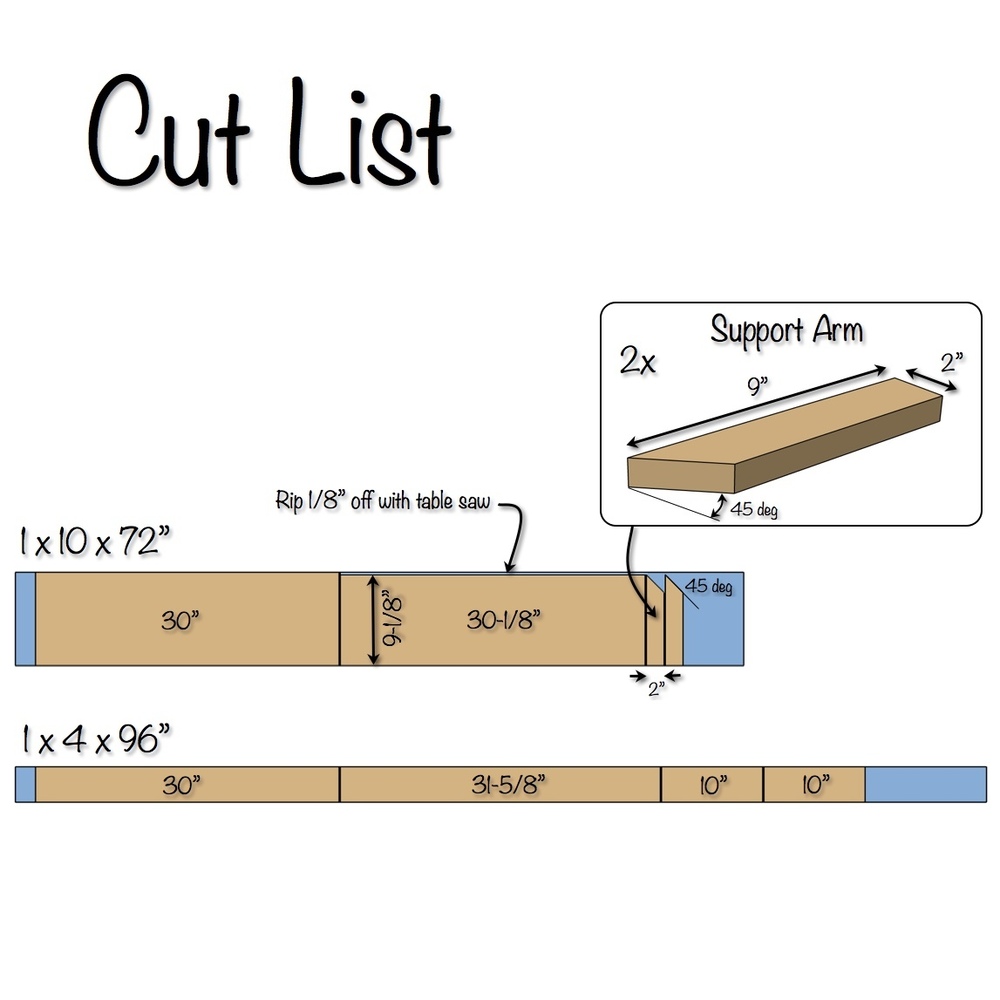

      First start by cutting the wood you'll need by following this easy to read cut list.

    2. Step: 2

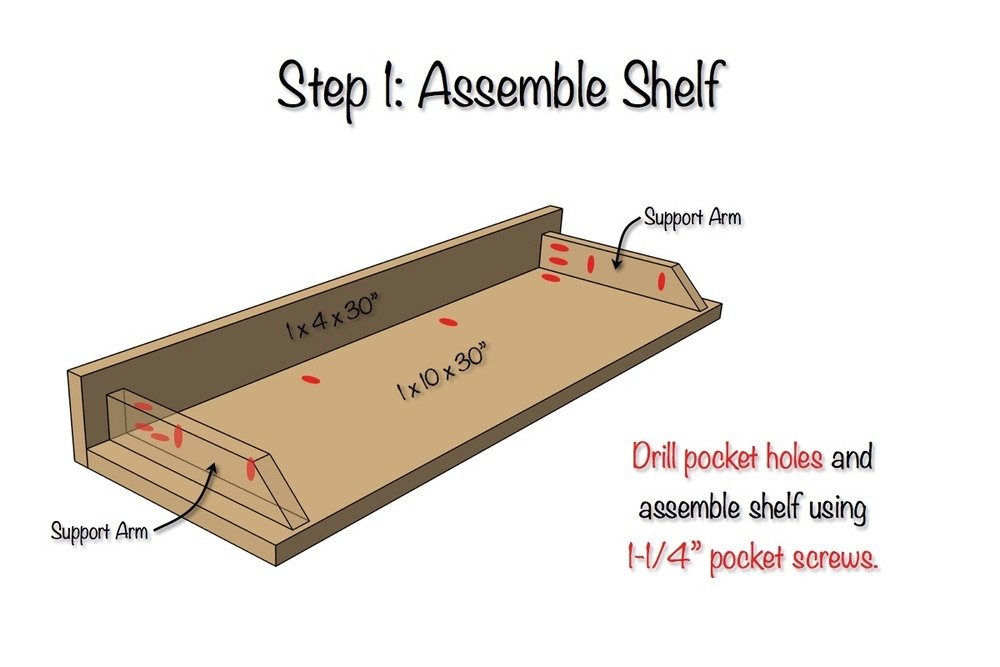

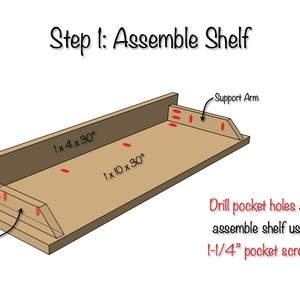

      Assembling the Shelf Assemble by drilling pocket holes as shown and assemble using 1-1/4" pocket screws.

    3. Step: 3

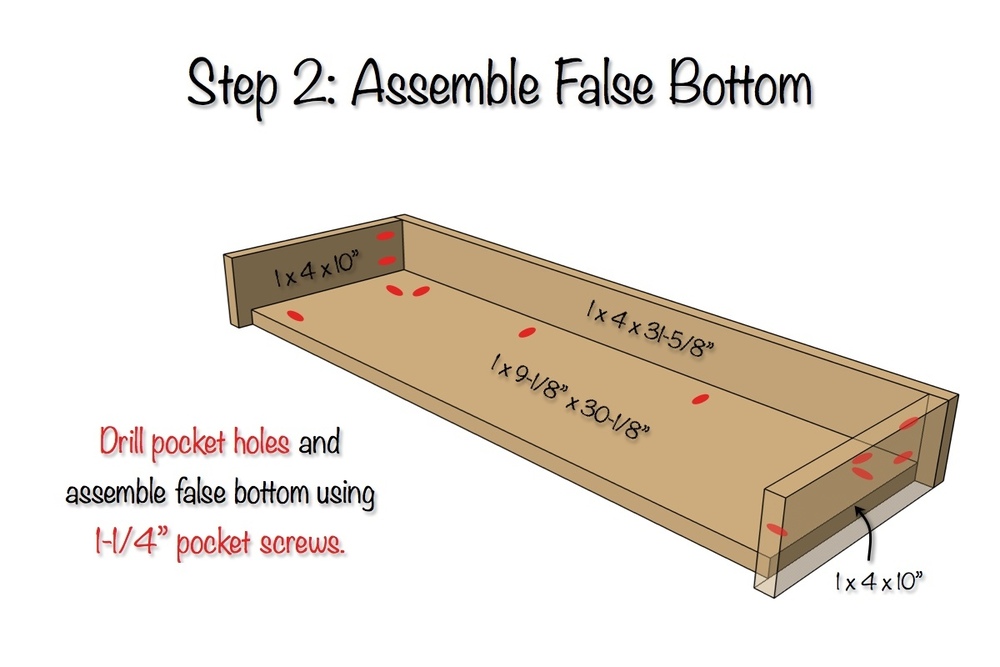

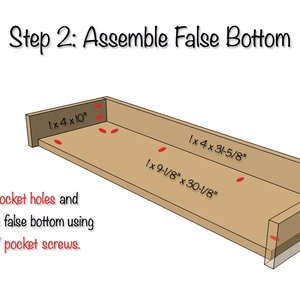

      Assembling the False Bottom Assemble by drilling pocket holes as shown and assemble using 1-1/4" pocket screws.

    4. Step: 4

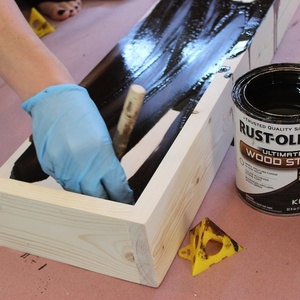

      It's best to finish the project before installing hardware. Sand and stain the shelf and false bottom as desired. Then, when dry, apply polyurethane to protect.

    5. Step: 5

      Install Piano Hinge Install piano hinge as shown using screws included.

    6. Step: 6

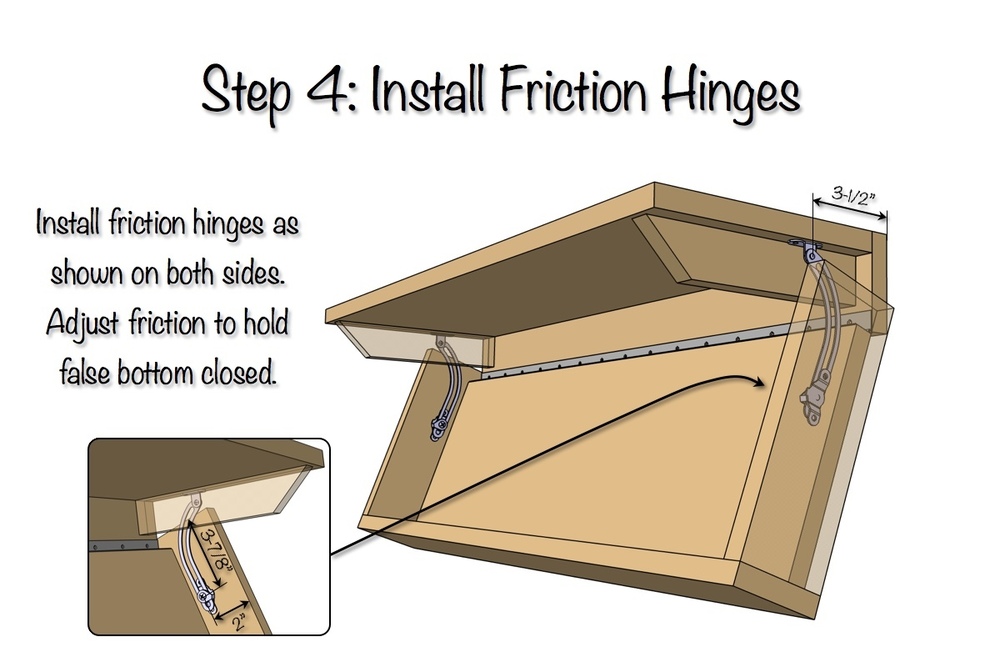

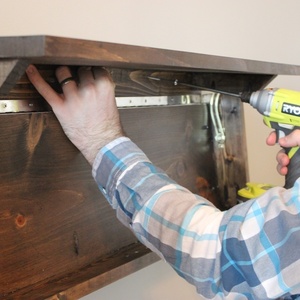

      Install Friction Hinges Install friction hinges as shown using screws included and adjust friction so the false bottom stays upright.

    7. Step: 7

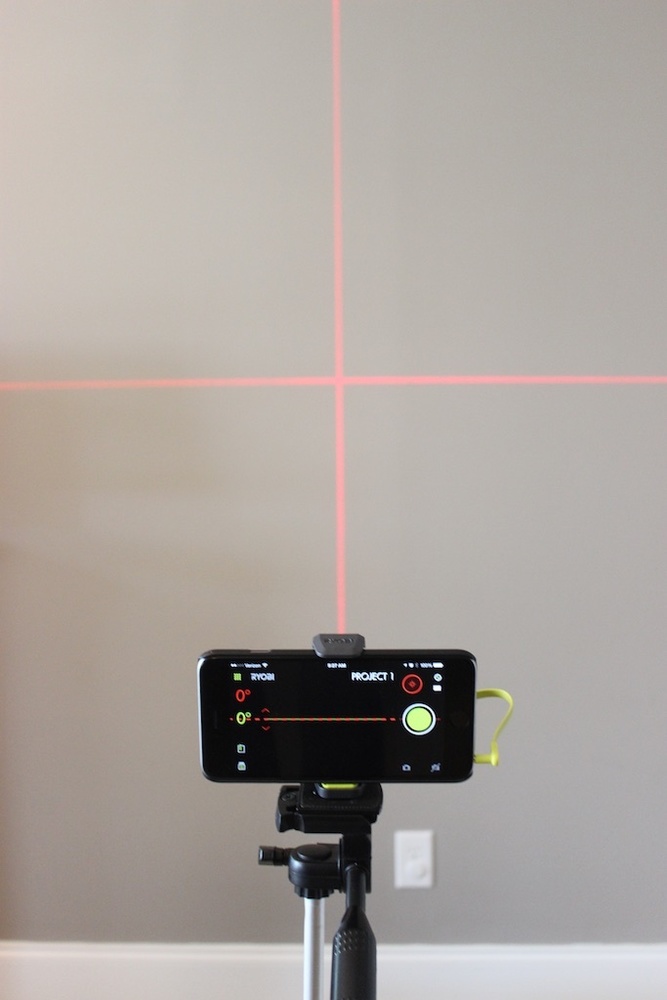

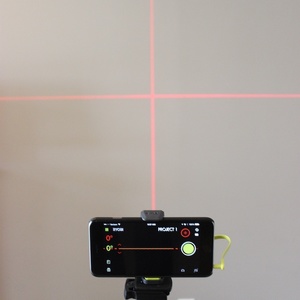

      Using the Phone Works Laser Level, mark a level line on the wall where you wish to mount your Secret Shelf.

    8. Step: 8

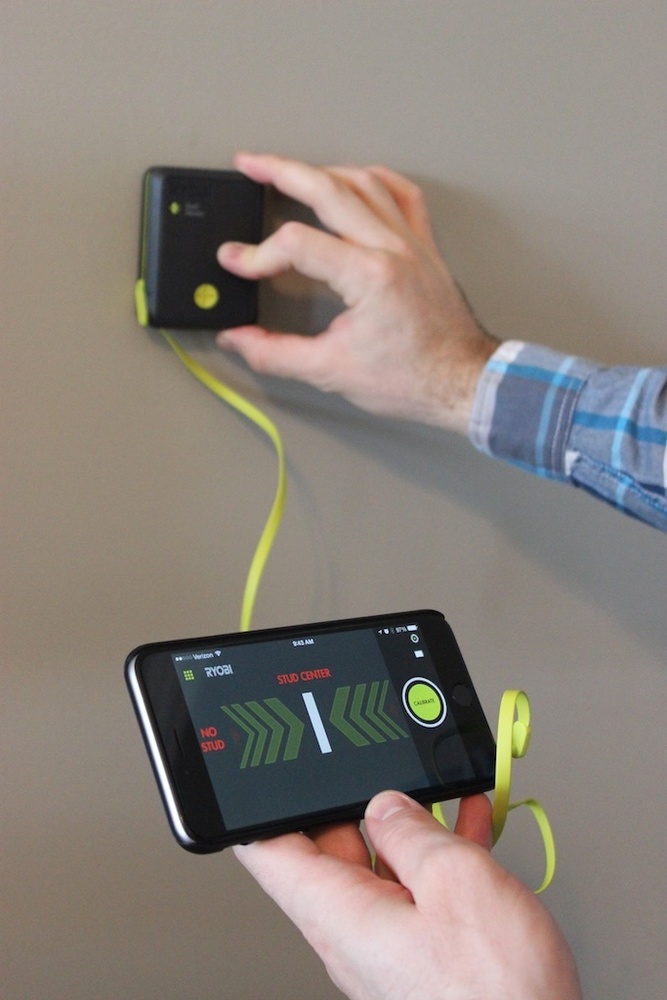

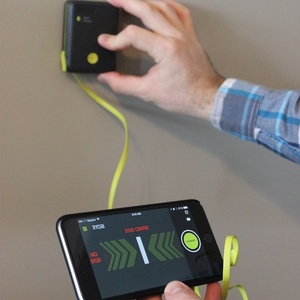

      Using the Phone Works Stud Finder, locate and mark two stud locations.

    9. Step: 9

      Mount Secret Shelf using two 2-1/2" wood screws per stud location. Note: Adjust the friction on the hinges to so that the false bottom stays upright but can be pulled down. You may also install a magnetic catch to help keep the false bottom in the upright position. Check out more great DIY plans from Rogue Engineer here.
