Wooden Tile-Matching Puzzle

by The House of Wood

Aug 13, 2017

Make this DIY tile-matching wooden puzzle using a scroll saw and some scrap wood!

• Project Information

  • Difficulty:	Intermediate
    Categories:	Crafts & Decor, Recreation

• Tools Used

  • 16 IN. VARIABLE SPEED SCROLL SAW
  • 18V ONE+™ 6 1/2 IN. CIRCULAR SAW
  • 2.5 AMP BAND SAW

• Materials Used

  • 1/2-INCH PLYWOOD
  • 1/4-INCH PLYWOOD
  • WOOD GLUE
  • 220-GRIT SANDPAPER

Project Steps

1. Step: 1

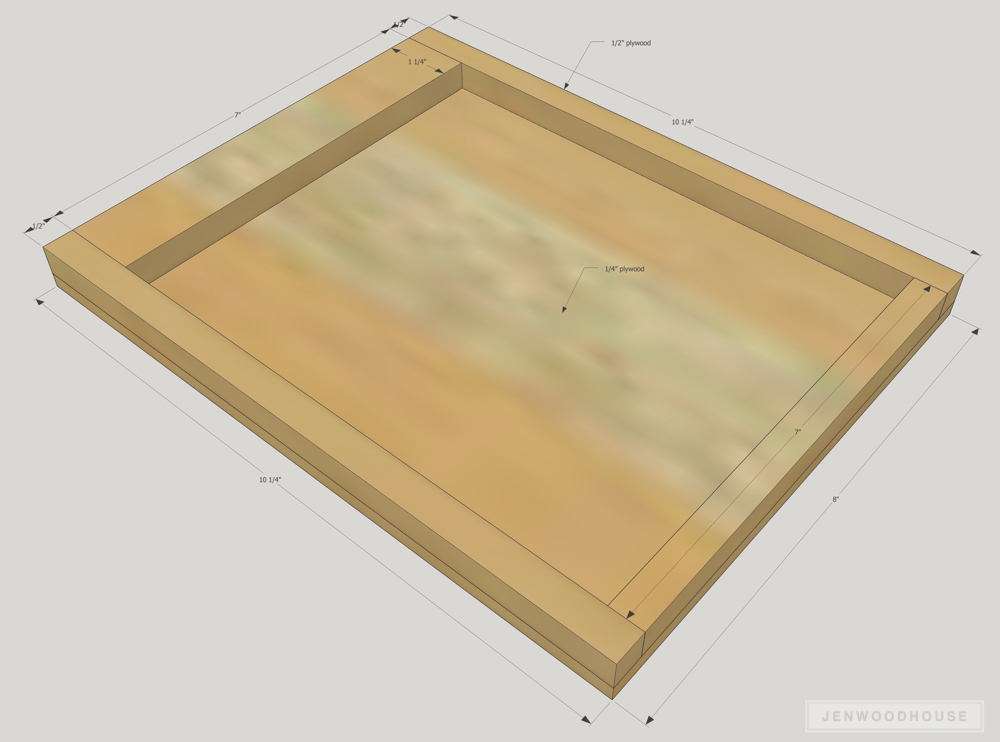

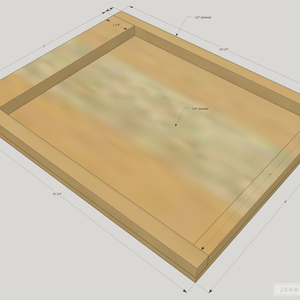

   Measure, mark, and cut the 1/2-inch and 1/4-inch plywood pieces to size using a bandsaw, circular saw, or table saw. Glue the frame together as shown.

2. Step: 2

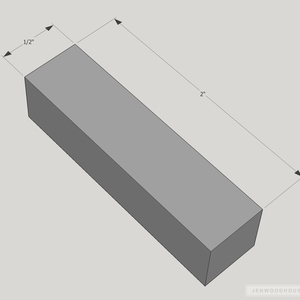

   Measure and draw out the puzzle pieces onto the 1/2-inch plywood. Using a scroll saw, carefully cut each piece out. Take your time and go slow to ensure the most accurate cut.

3. Step: 3

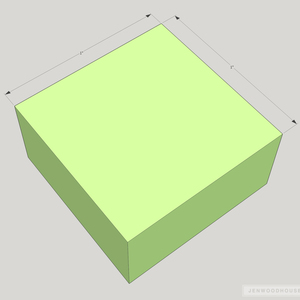

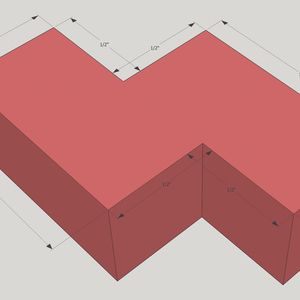

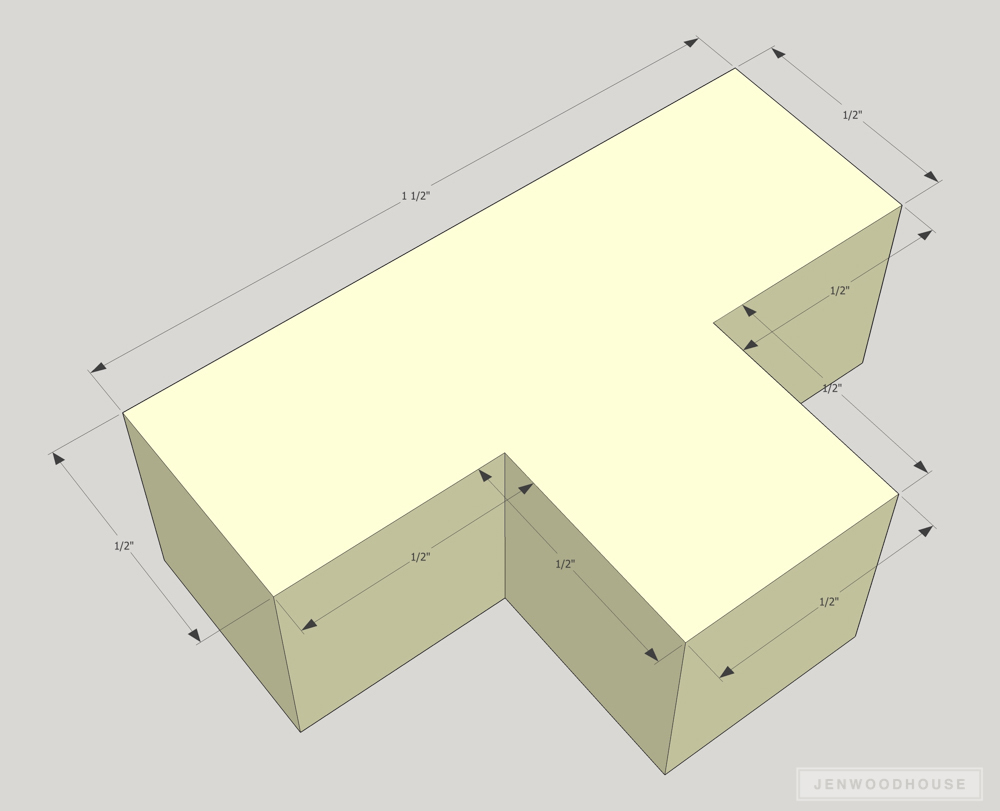

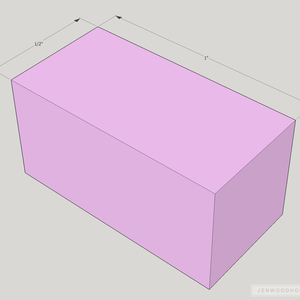

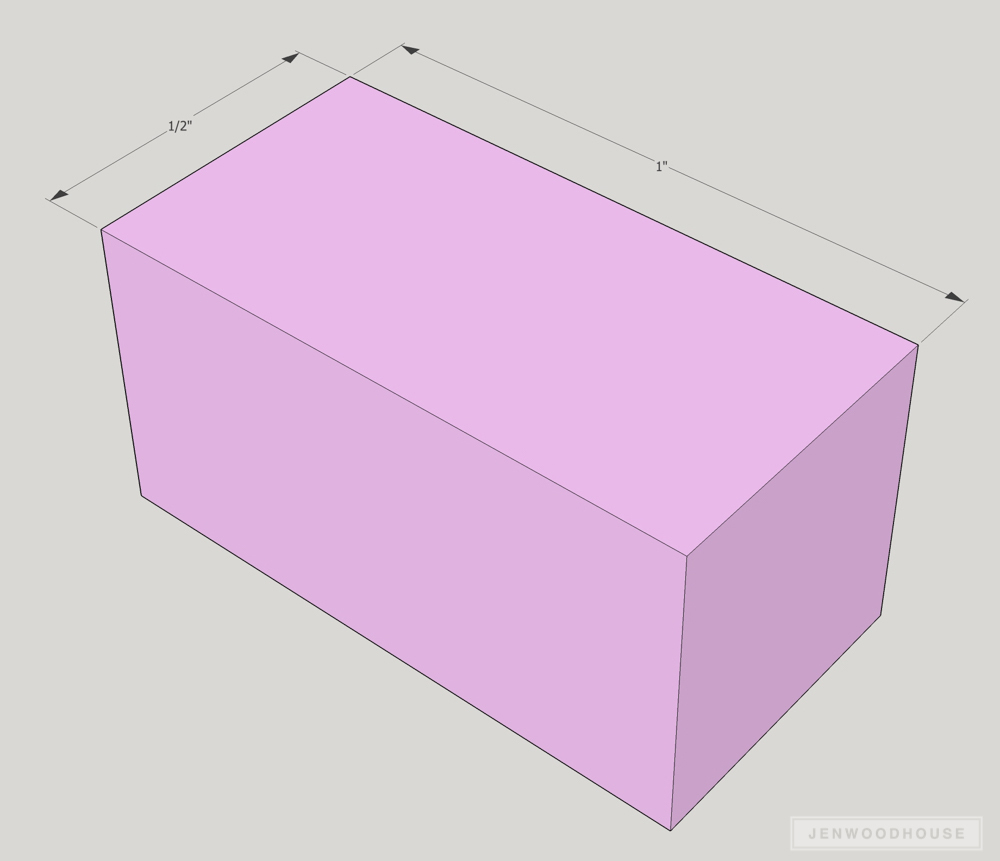

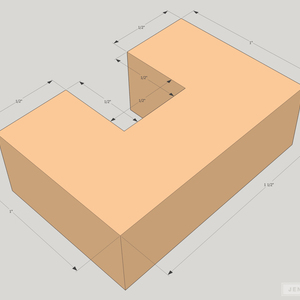

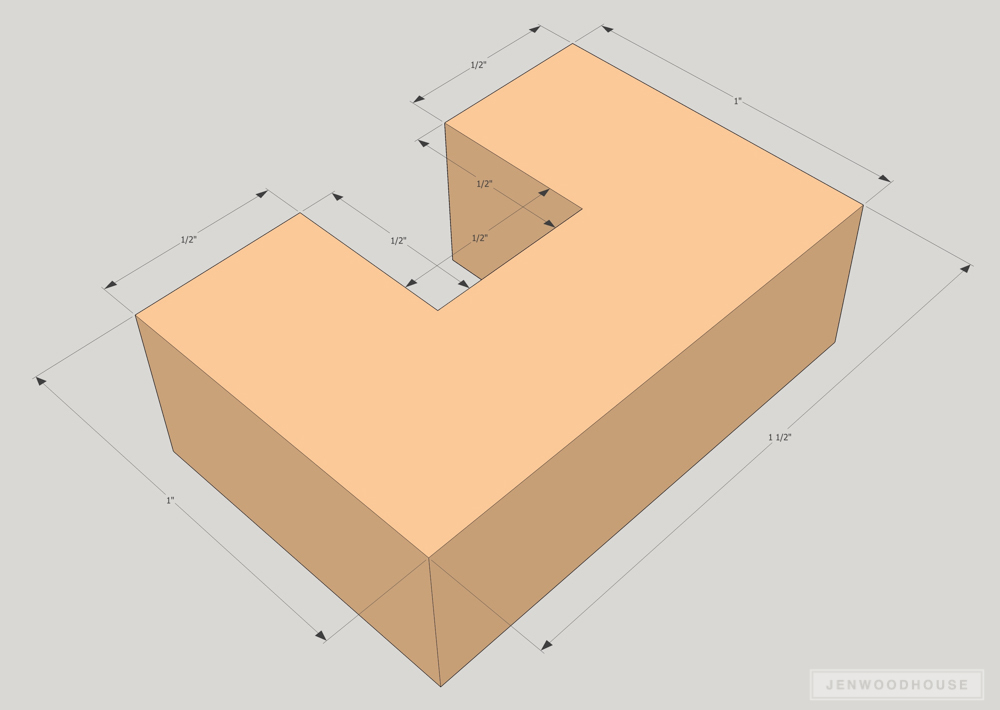

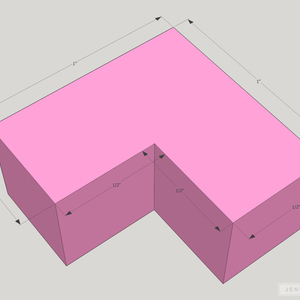

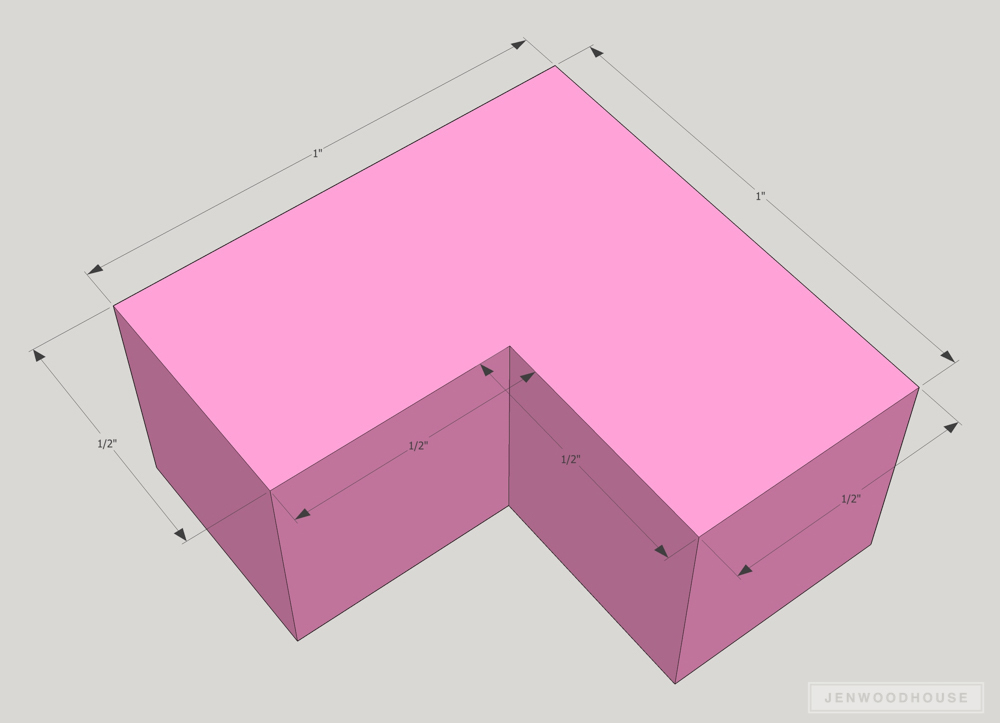

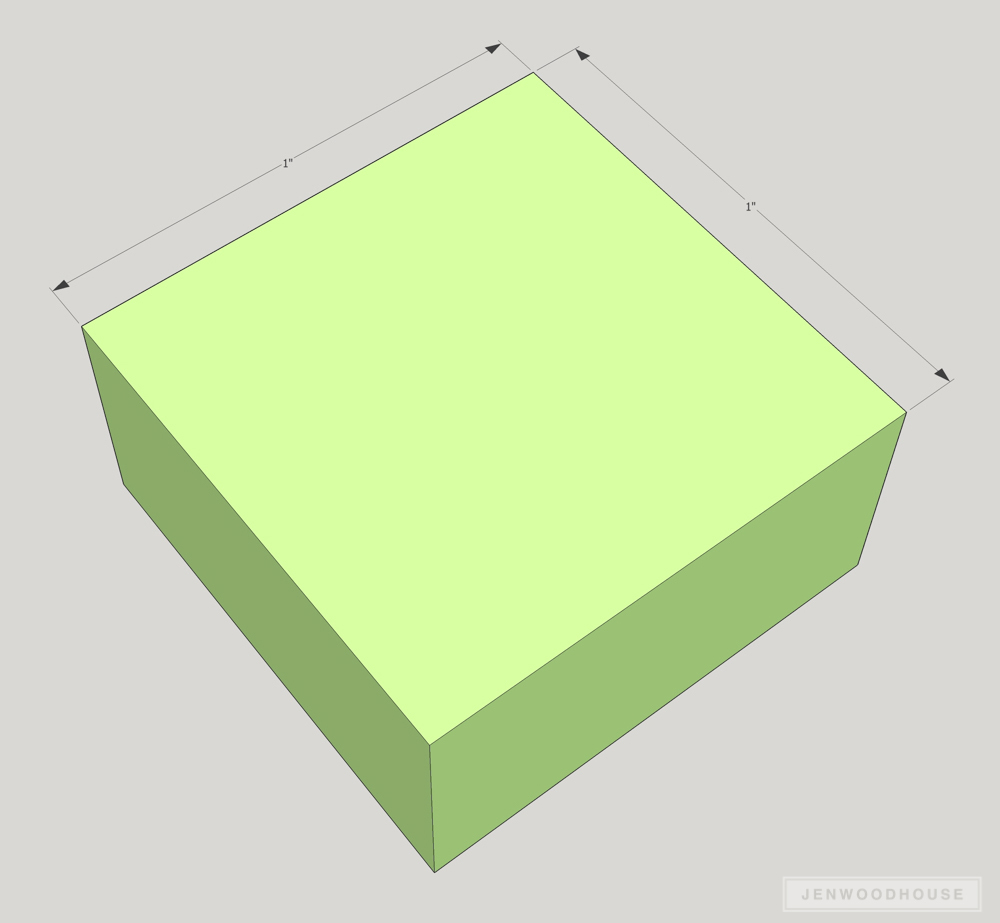

   Measure and draw out the puzzle piece as shown. Cut it out using the scroll saw.

4. Step: 4

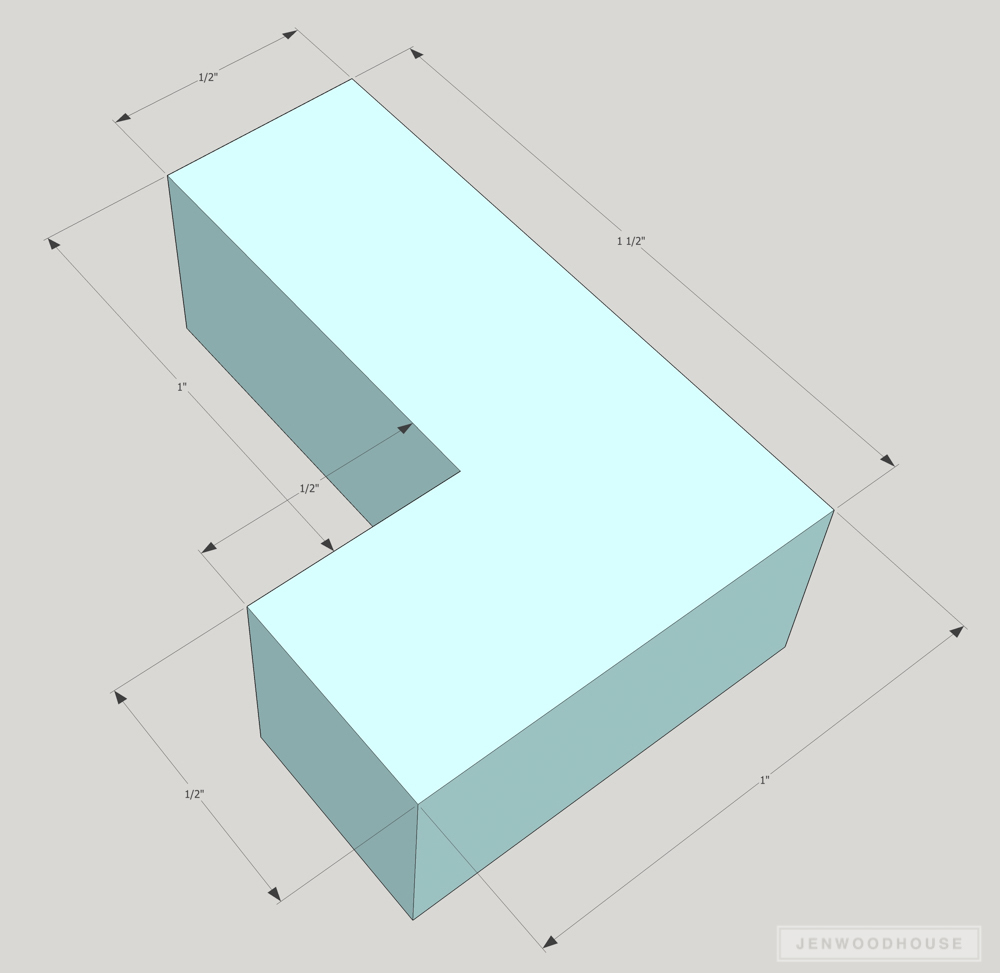

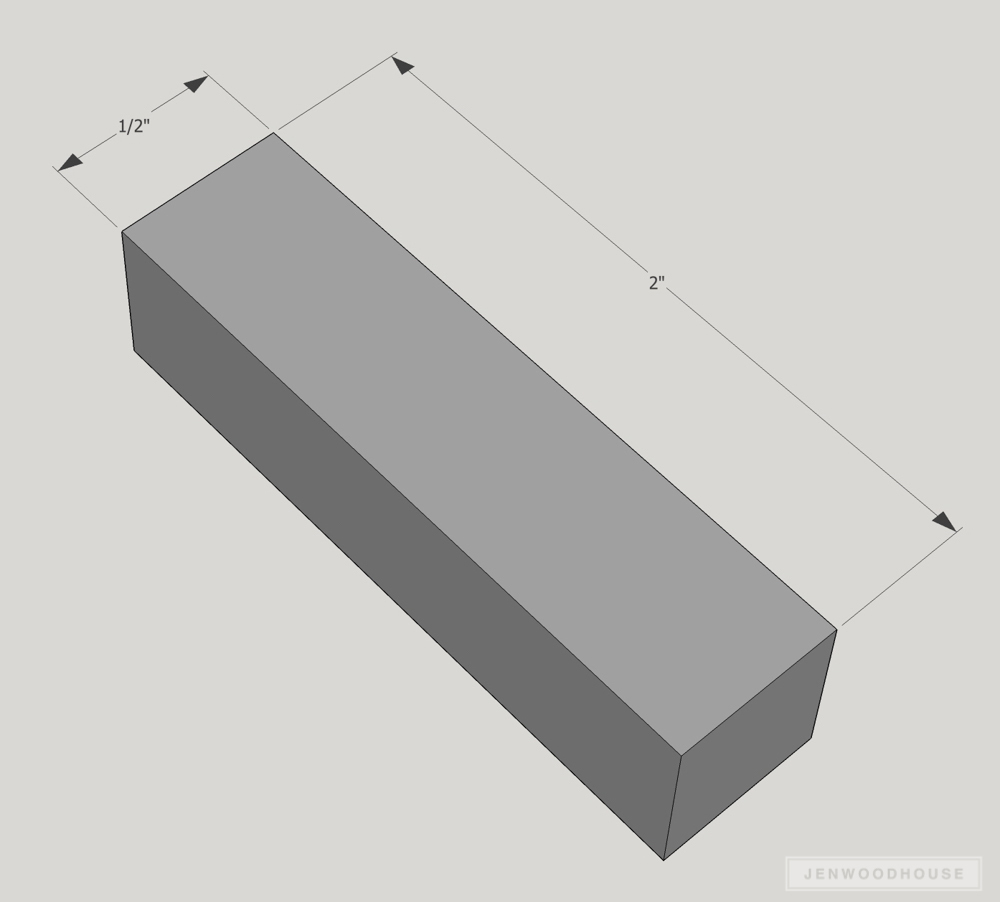

   Measure and draw out the puzzle piece as shown. Cut it out using the scroll saw.

5. Step: 5

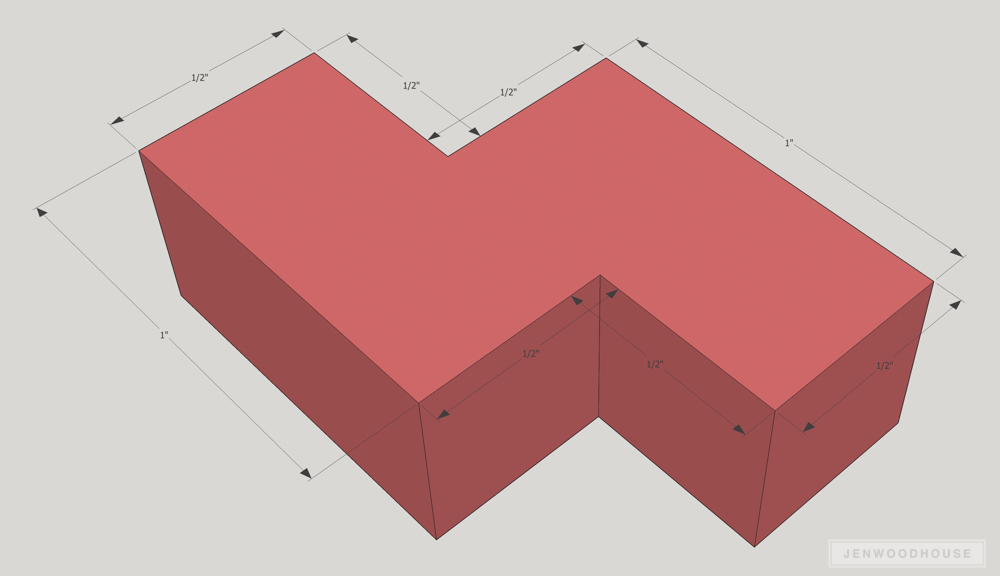

   Measure and draw out the puzzle piece as shown. Cut it out using the scroll saw.

6. Step: 6

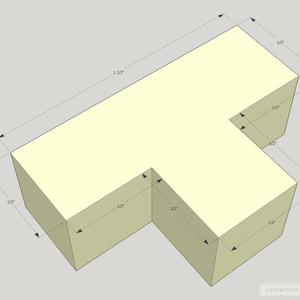

   Measure and draw out the puzzle piece as shown. Cut it out using the scroll saw.

7. Step: 7



   Measure and draw out the puzzle piece as shown. Cut it out using the scroll saw.

8. Step: 8



   Measure and draw out the puzzle piece as shown. Cut it out using the scroll saw.

9. Step: 9



   Measure and draw out the puzzle piece as shown. Cut it out using the scroll saw. After all of the puzzle pieces are cut, use 220-grit sandpaper to hand-sand off any rough edges. Paint with colorful acrylic paint.
