Foldable Recipe Holder

by CherishedBliss

Jan 20, 2017

With the ability for fold down flat, this recipe stand makes reading recipes easy and functional.

• Project Information

  • Difficulty:	Easy
    Categories:	Crafts & Decor

• Tools Used

  • 18V ONE+™ AIRSTRIKE™ 18GA BRAD NAILER
  • 18V ONE+™ 6 1/2 IN. CIRCULAR SAW
  • 18V ONE+™ PALM ROUTER
  • 18V ONE+ HP COMPACT BRUSHLESS 1/2" DRILL/DRIVER KIT

• Materials Used

  • 1/2" HINGES
  • BRAID NAILS
  • WOOD GLUE
  • 1/2" MDF BOARD
  • 1/4"MDF BOARD
  • 2

Project Steps

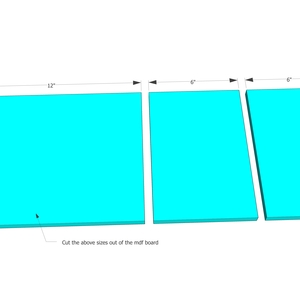

1. Step: 1



   Cut pieces according to sizes on picture.

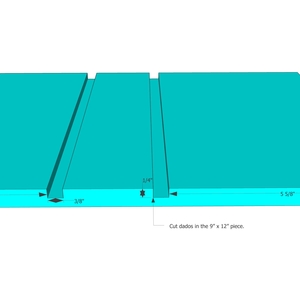

2. Step: 2



   Using a router, cut dados in the board according to the measurements.

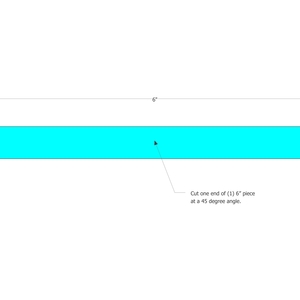

3. Step: 3



   Cut a 45 degree angle on (1) of the 6” boards. Making sure the longest side measures 6”.

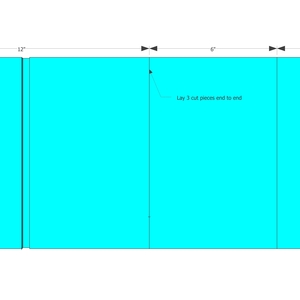

4. Step: 4



   Lay the 3 pieces end to end. The right 6” piece should have the longest side facing up, the same as the dados. (as pictured)

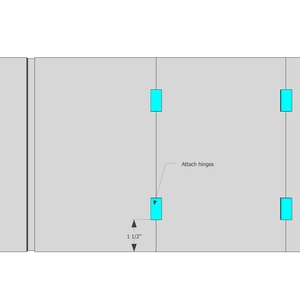

5. Step: 5



   Attach the boards using the hinges, making sure to center the hinge on the seams.

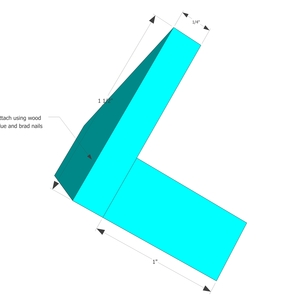

6. Step: 6



   Build the part that will hold the recipe book/tablet. This should be 9" wide.

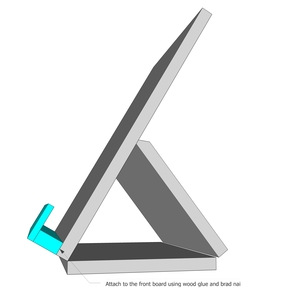

7. Step: 7



   Attach to the recipe stand with wood glue and brad nails from the back of the 12" board.
