This projects uses affordable and common shelf brackets to make a retro modern set of shelves.This versatile DIY concept could be used to make bookcases, media consoles, cubbies, and even entertainment centers. I used ½”plywood and 6”by 8” brackets but larger brackets and thicker plywood would also work.
Cut the plywood to length I cut the plywood into the lengths shown in the drawing. I used my circular saw but this could also be done with a compound miter saw. I made my shelves 4 feet long with 11” tall vertical supports and 7” tall legs.
Sand the pieces I used my orbital sander with 150-grit sanding pads to sand down the edges of the plywood

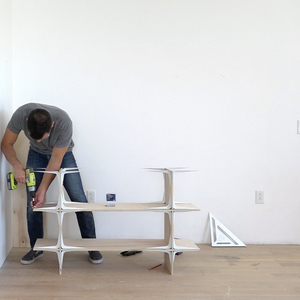

Screw it together I screwed the brackets to the vertical supports and then screwed the supports to the shelves.
Screw the plywood to plywood If you want to save a little money and use fewer brackets you can just use brackets on the front face of the shelves and then use finish screws to screw the plywood to the plywood in the back.
