If you like to work hard AND play hard, then make this console table your next build. Wow your guests as you transform your living space into the ultimate game station.

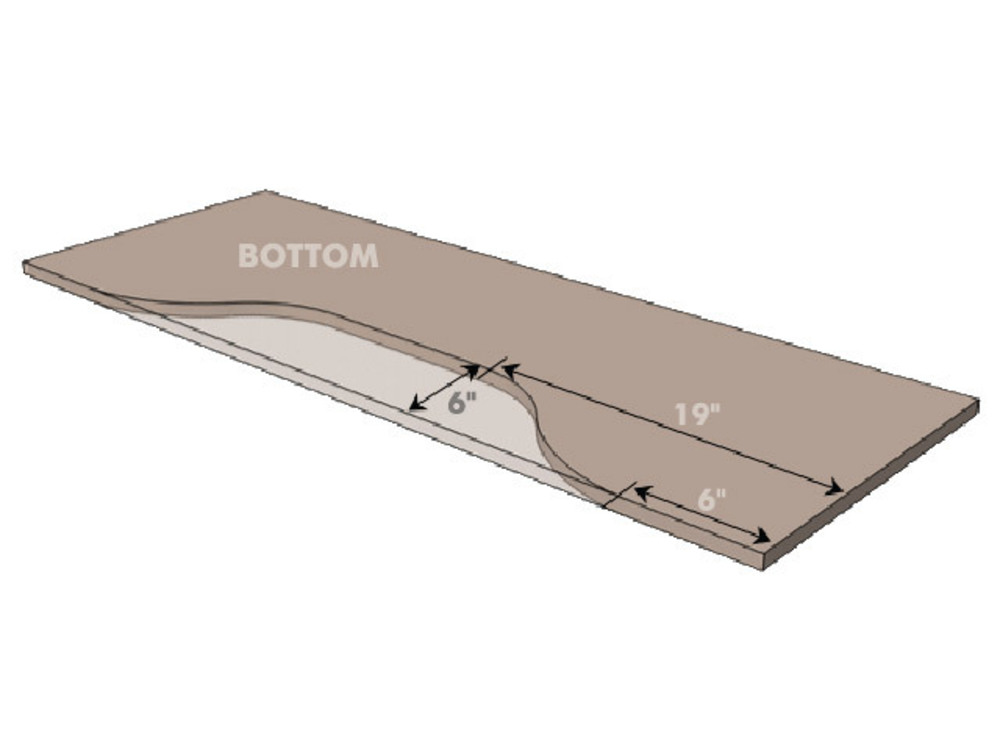

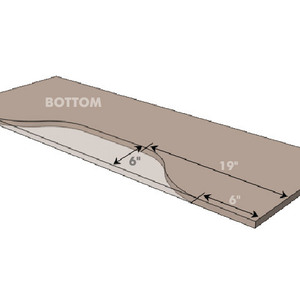

ASSEMBLE BASE: Layout a natural curve (same on both sides). Then, using a jigsaw cut out bottom as shown.

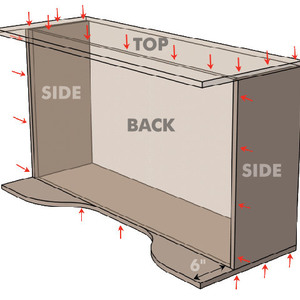

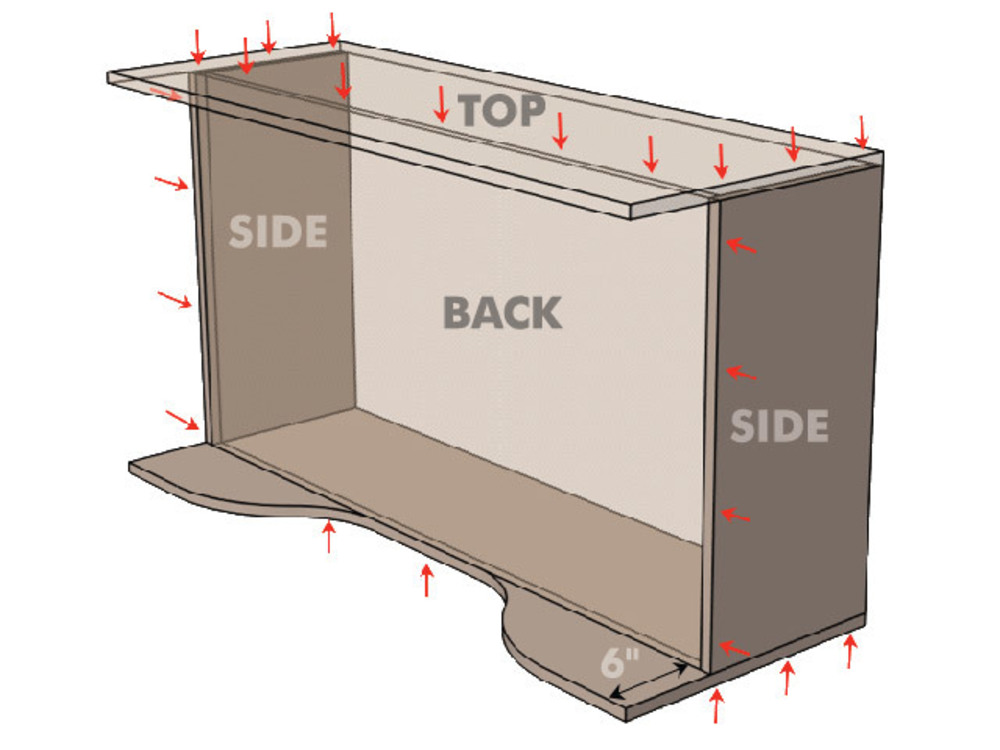

Assemble the base as shown using wood glue and 1¼” screws (predrill holes using 7/64” drill bit) or use brad nails (not all shown). Helpful Hint: Prior to assembly, any exposed plywood edges should be edge banded. Also consider your finish and how to work that into the assembly most efficiently.

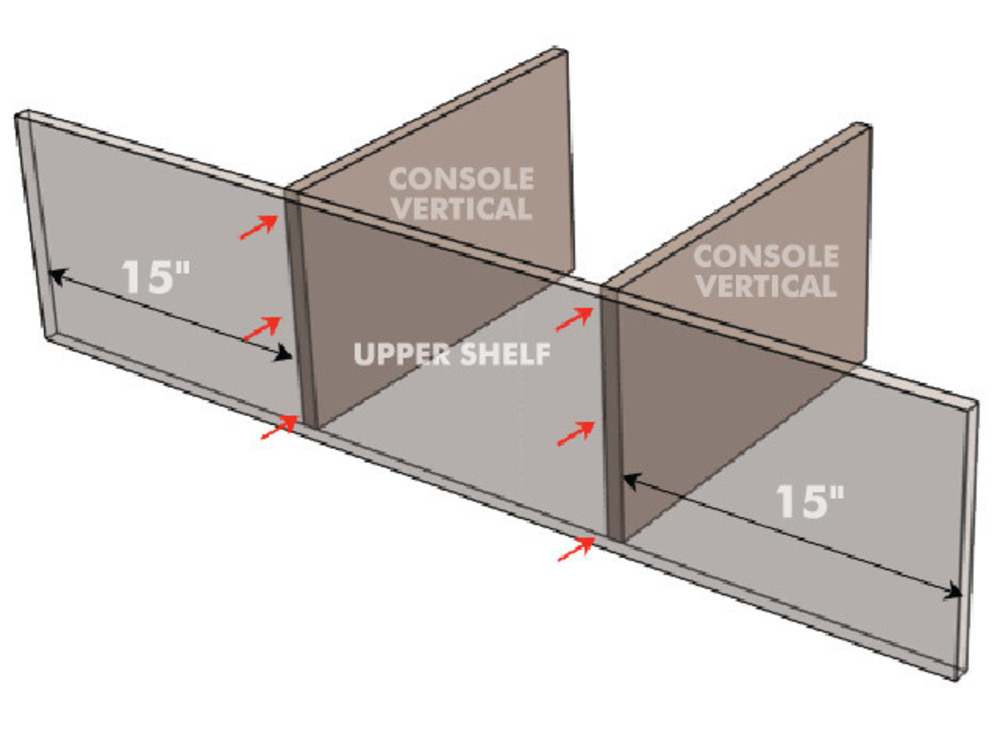

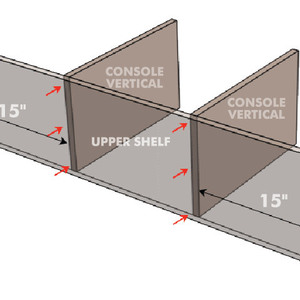

INSTALL CONSOLE: Start by attaching the upper shelf and vertical panels using wood glue and 1¼” screws (pre-drill holes using 7/64” drill bit) or use brad nails.

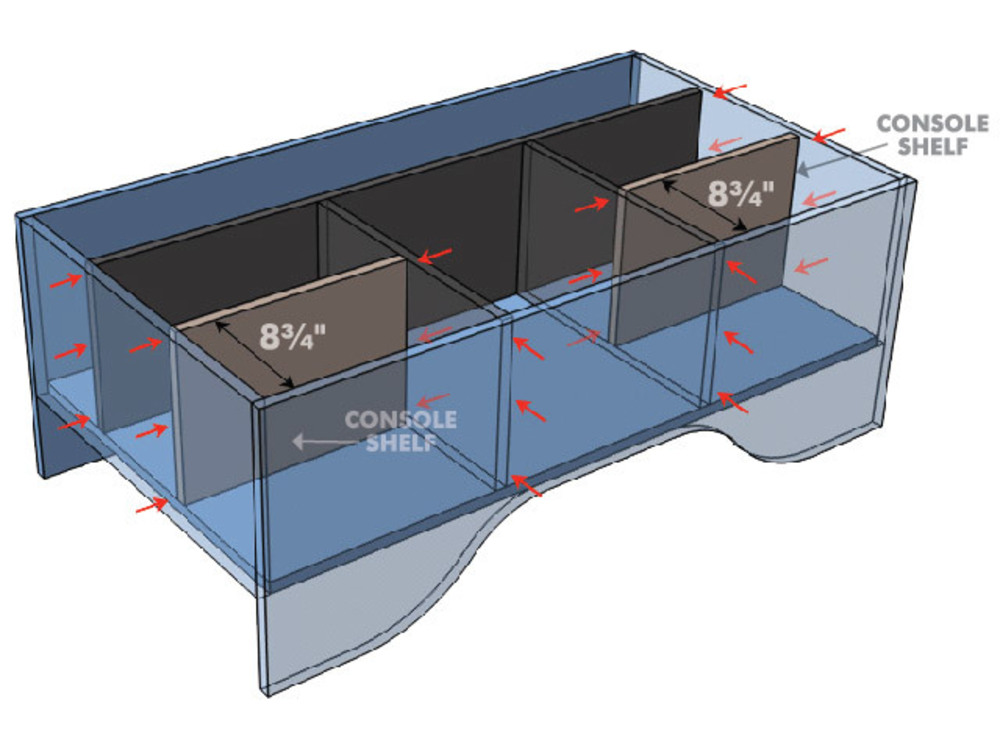

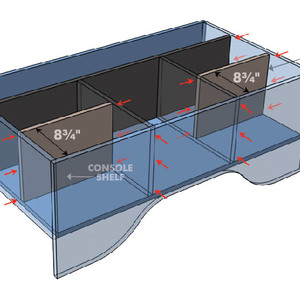

Apply wood glue and place upper shelf and verticals, check square and secure with 1¼” screws (pre-drill holes using 7/64” drill bit) or use brad nails. Then, install shelves with wood glue and 1¼” screws or brad nails.

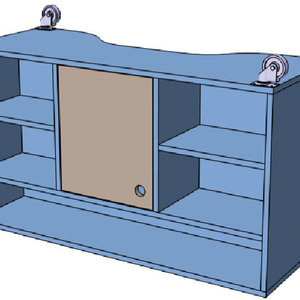

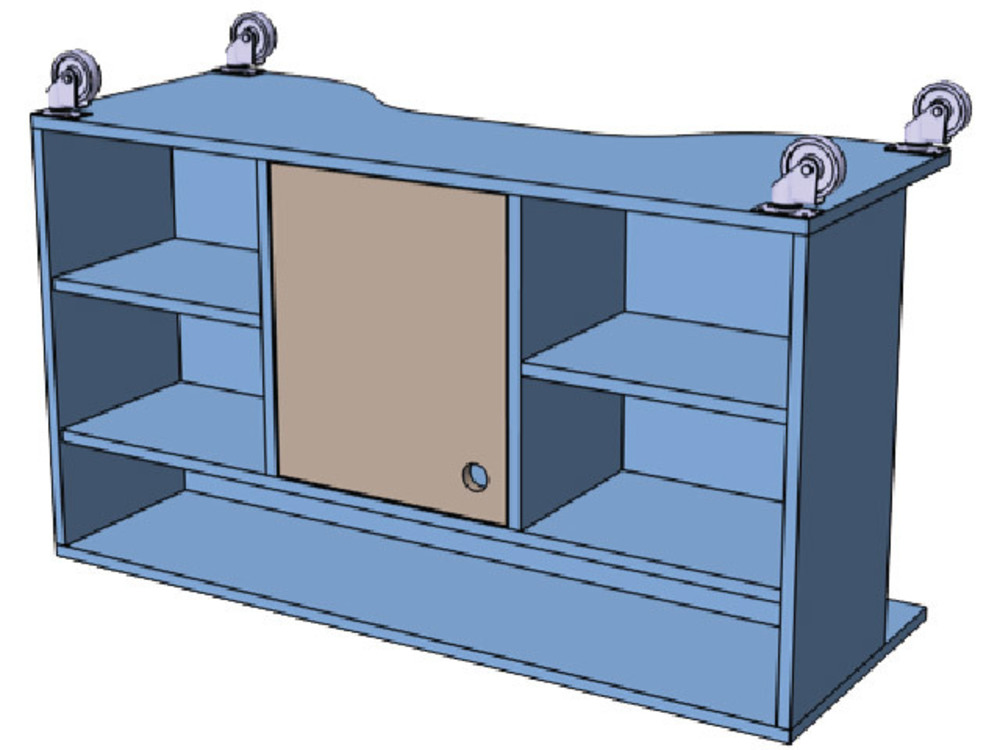

INSTALL CASTERS AND DOOR: Trim door as required to fit, edge band, install knob or drill hole and install using desired hinges.

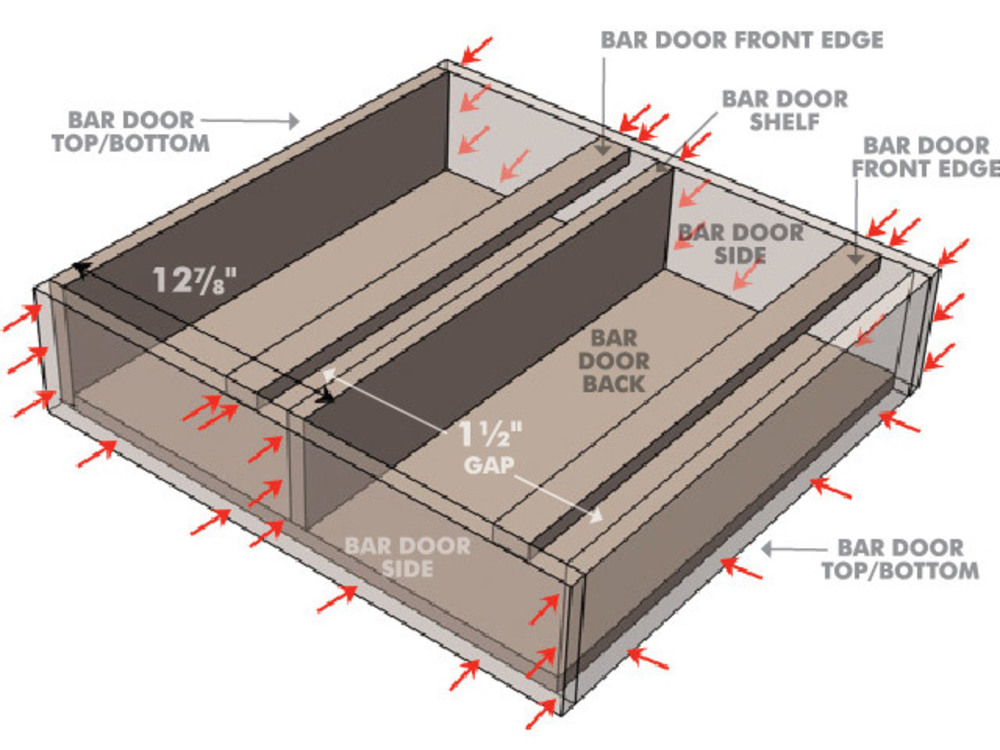

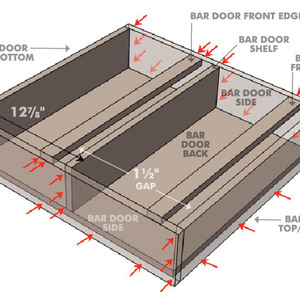

ASSEMBLE BAR DOOR #1: Assemble the door as shown using wood glue and 1¼” screws (pre-drill holes using 7/64” drill bit) or use brad nails (not all shown).

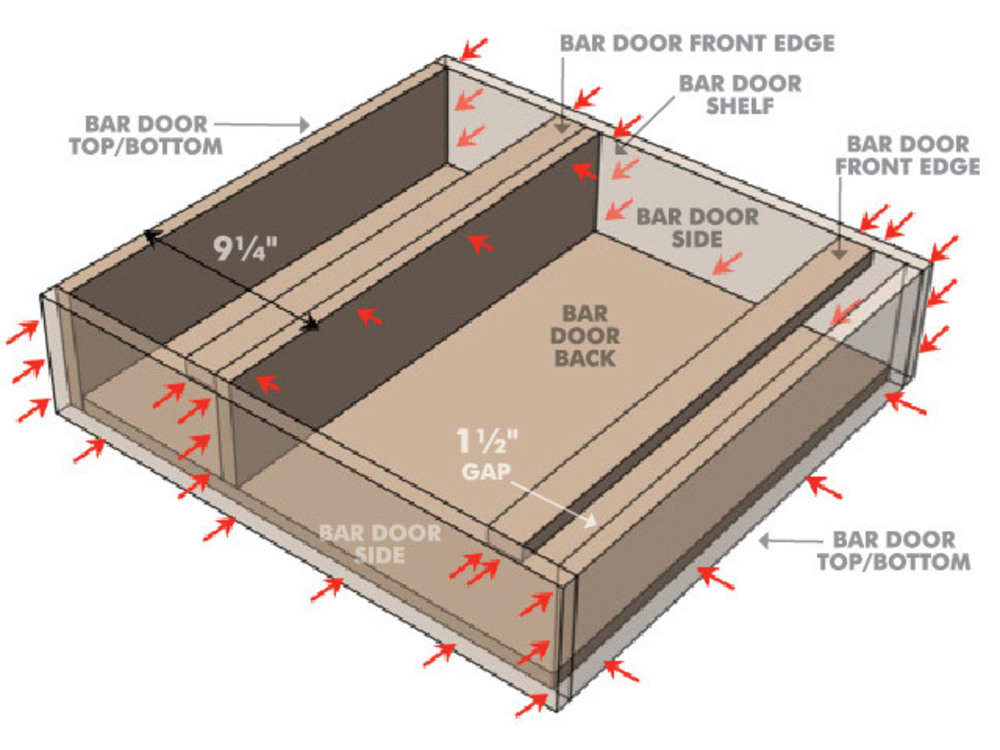

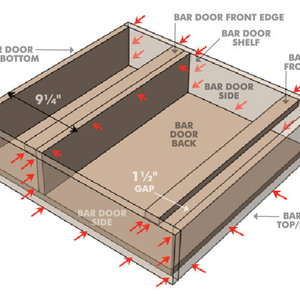

ASSEMBLE BAR DOOR #2: Assemble the door as shown using wood glue and 1¼” screws (pre-drill holes using 7/64” drill bit) or use brad nails (not all shown).

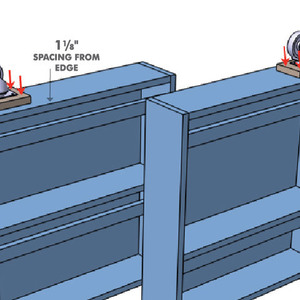

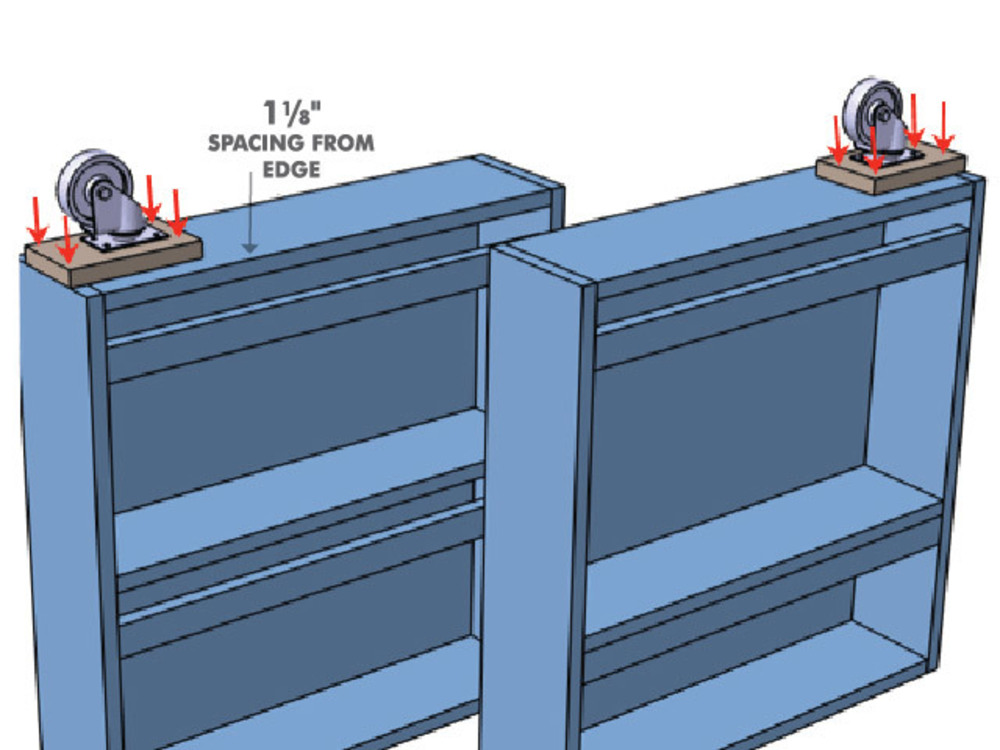

ATTACH DOOR CASTERS: Secure 3½” x 6” spacers using wood glue and 1¼” screws (pre-drill holes using 7/64” drill bit) or use brad nails. Then, install casters using 1¼” washer head screws.

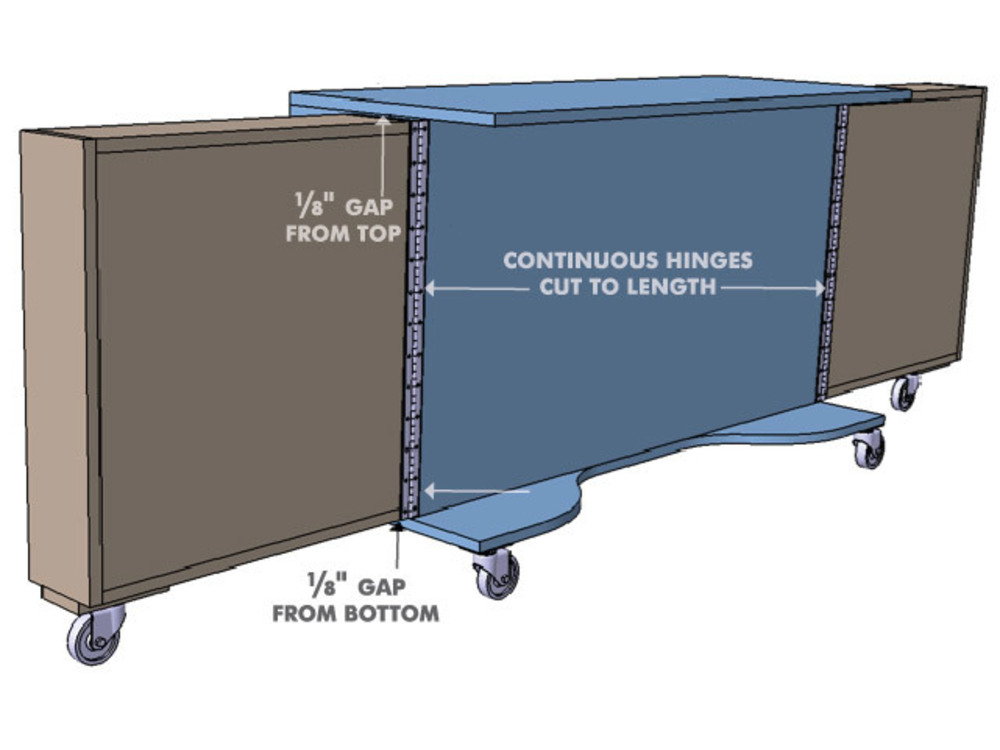

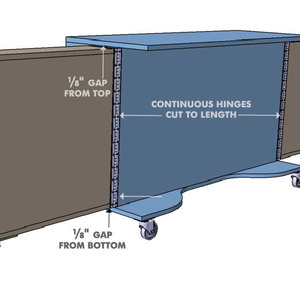

INSTALL BAR DOORS: Cut continuous hinges to 25”. Shim doors to correct height, then pre-drill and install hinges with included hardware.

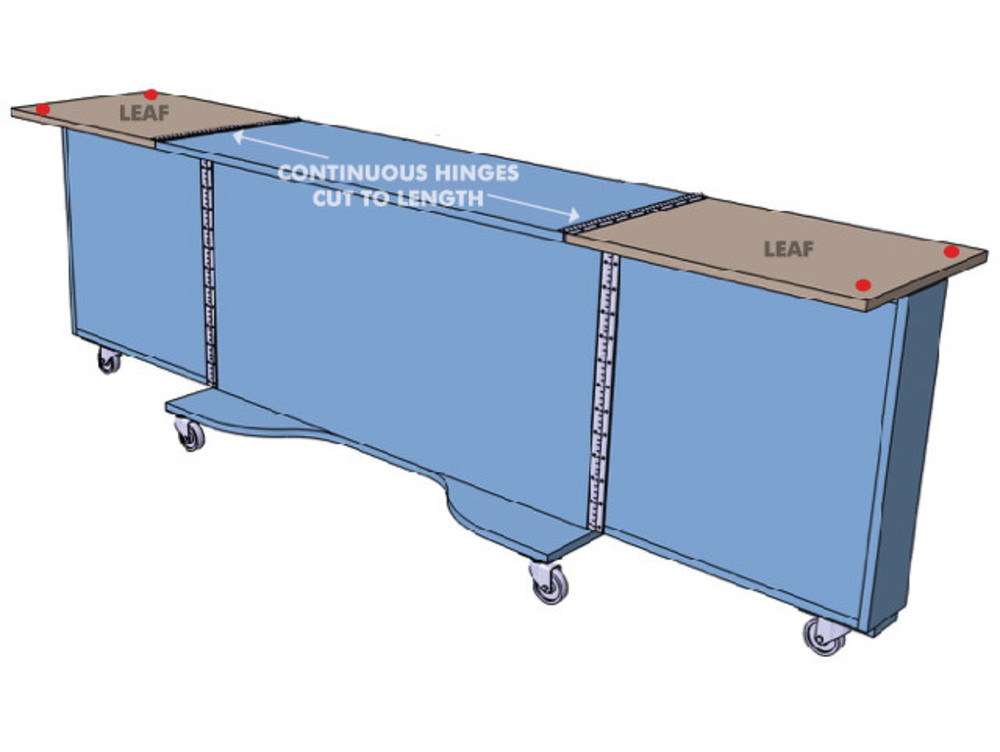

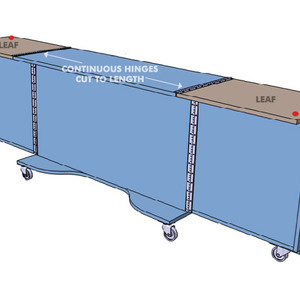

INSTALL LEAFS: Cut continuous hinges to 18”. Pre-drill and install hinges with included hardware. Then add 1/8” thick bumpers to allow correct spacing when closed.
